Detailed Description
Conforming to：GB/T53293 S43AOUMS-SU08A
Equivalent to：AWS F6AZ-EL12 JIS YSF42-W11
Description:
SYQ-HJ431 is defined as fused type fluxes with high-manganese high silicate and low fluorine elements. Color in brown to light yellow with vitreous granules 8-40 meshes in size. Fluxes are suitable for use with both AC & DC. When applying D.C. fller wire wil be connected to electrode positive (EP). Fluxes have good welding technology behavior.
Field of application:
Fluxes match filer wire (i. e. SU08A. SU26,and SU34 etc.) of which may be used for welding of mild-steel low aloyed steel (16Mn, 15MnV) structures for examples, boilers, ships, pressure vessels and Electro-slag welds as well as copper welds.
Mechanical properties of deposited metal: (Accl. to GB/T5293 S43A0UMS-SU08A)
|
Test ltem |
Yield Stressos MPa |
Tensile Strength MPa |
Elongation 85% |
Impact energy AKV(J) |
|
0℃ |
||||
|
Standard Value |
≥330 |
430-600 |
≥20 |
≥27 |
|
Test' Value |
380 |
505 |
30 |
90 |
Remarks:
1. Before welding, fluxes need to be baked for two (2) hours at around 250℃
2. Removal of rust, oil, dirt, water, impurities etc in welding- areas.

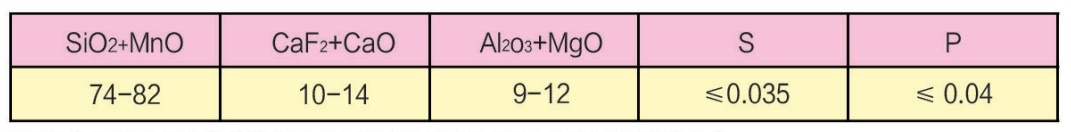

Compositions of fluxes(%)
Packing & Shipping
Application
