Detailed Description
Conforming to：GB/T12470 S552FB-SUM3 GB/T17854 F410FB-S410
Description and application

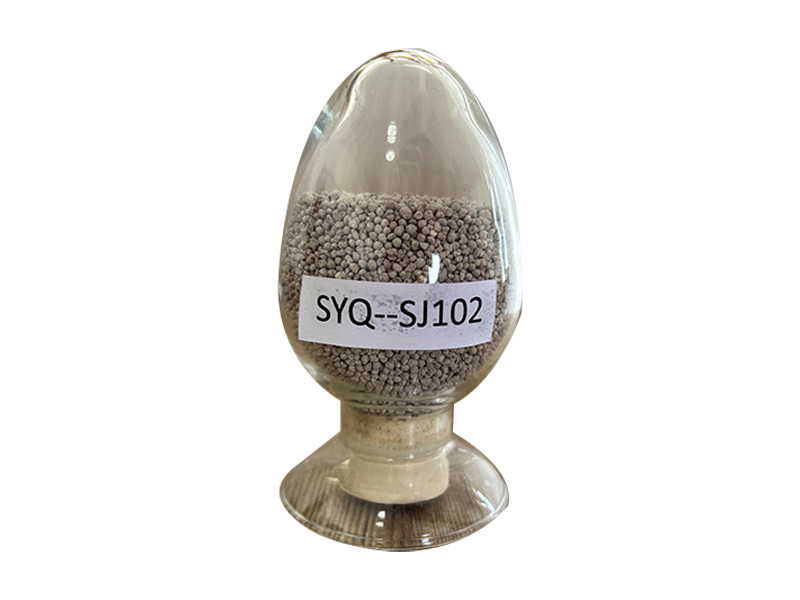

SYQ-SJ102 is high basicity sinter fux, ofwhite round grain. Grain Size mesh:10 60 baity26,have good welding procedure, good weld joint and excellent high temperature slag removing .There isno Mn andSi transfer in weld metal.lt' s adopt DCEP powder and matching low carbonsteel low aly steel austenite steel and martensite steel wire in multiple-layer welding. The weld metal have mechanical property and high low temperature impact toughness, it is used for bead welding in matching proper wire have good high temperature oxidation resistance and wear resistance capability.
Flux type: Fluoride-Basic
Basicity index: 2.6
Grain size: 2.0-0.28mm(10-60meshes)
Typical all weld metal mechanical property
|
Wire matched |
Yield Stressos MPa |
Tensile Strength MPa |
Elongation 85% |
Impact energy AKV(J) |
|
|
-20℃ |
-40℃ |
||||
|
SUM3 |
≥470 |
550-700 |
≥18 |
≥34 |
≥27 |
|
EM12 |
≥33 |
415-550 |
≥22 |
-- |
≥27vvv |
|
EH14 |
≥400 |
480-660 |
≥22 |
-- |
≥27 |
Remark
1. Before welding, fluxes should be baked for two hours at 300-350℃
2. Removal of rust, oil, dirt, water, impurities, etc in welding-areas.

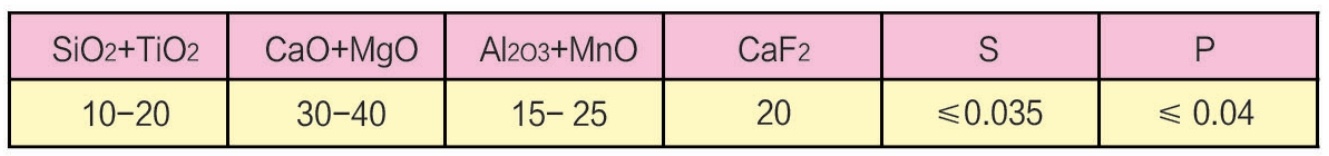

Compositions of fluxes(%)
