Detailed Description
Conforming to：GB/T5293 S49S2MS-SU34
Equivalent to： AWS F7 A0-EH14 JIS YSF-W41
Description and application

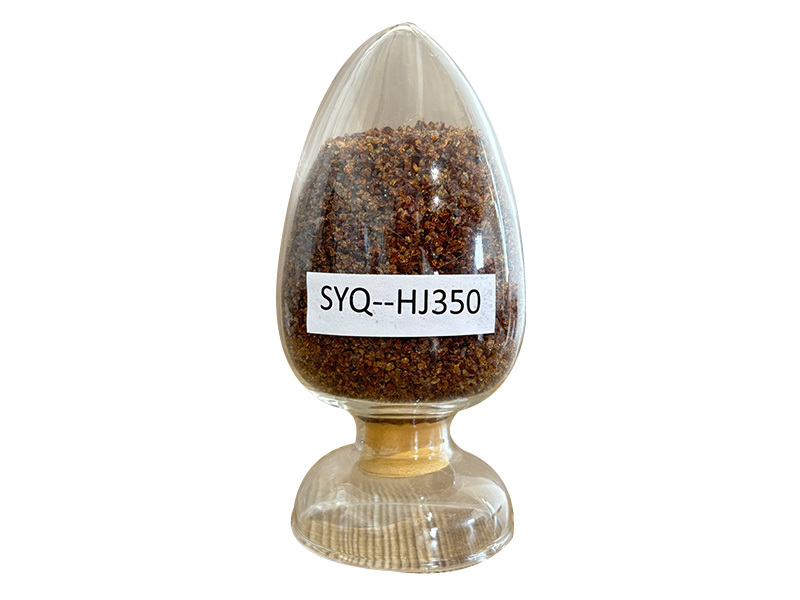

HJ350 is defined as fused type fluxes medium-manganese, medium-silicate and medium fluorine elements, color in brown to high yllow, with vitreous granules 8-40 meshes in size. Fluxes are suitable for use both AC and D.C. When applying D.C, flrwire wil be connected to electrode positive (EP). Fluxes have good welding technologica behavior.
Field of application:
Fluxes match proper fller-wire (i.e SU26、SU34、SUM3 etc) of which may be use for welding of low-alloyed steel (i.e. 16Mn、15MnVN、15MnV etc) important structures for example: ships, boilers, pressure vessels etc. AS required by fine granule fluxes, they can be used for SAW with llerwire to serve thin-plating weld.
Typical all weld metal mechanical property
|
Wire matched |
Yield Stressos MPa |
Tensile Strength MPa |
Elongation 85% |
Impact energy AKV(J) |
|
|
0 |
-20℃ |
||||
|
Guaranteed value |
≥390 |
490-670 |
≥18 |
≥27 |
≥27 |
|
Guaranteed Value |
≥400 |
480-660 |
≥22 |
≥27 |
≥27 |
|
SU34 |
410 |
524 |
30 |
115.3 |
55 |
|
EH14 |
410 |
524 |
31 |
115.3 |
55 |
Remark
1. Before welding, fluxes should be baked for two hours at 300-350℃
2. Removal of rust, oil, dirt, water, impurities, etc in welding-areas.

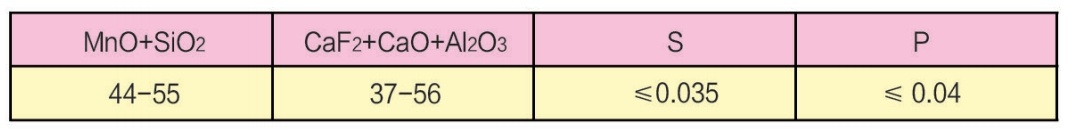

Compositions offluxes(%)
Packing & Shipping
Application
