Detailed Description
Conforming to:GB 「T5293 S43S0AR-SU08A S49S2AR-SU26
Equivalent to:AWS-A5.17 F6A0-EL12 F7A2-EM12K DIN BAR 188AC10KM
Description and application

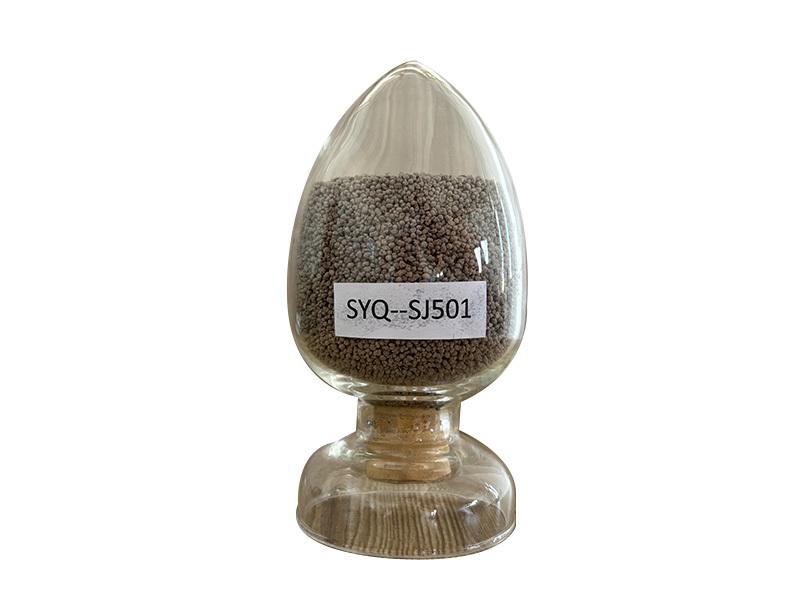

Agglomerated acid flux for welding of ordinary carbon manganese, low alloy structure and boiler quality stee in combination with appropriate SAW wire (such as EL8,EM12. EM12K). The flux suitable for high speed welding and provides very good weld bead apperance and excellent slag removal even with narrow groove and flt welds. The other character of 2-SJ501 is high resistance to cracking and porosity. Especially it is insensitive to oil, rust, scale and dirt on the surface to be welded. Most being applied to double-side with single pass weld and fllet welds. As the consumption of the flux is very low,it is very economical.
Flux type: Aluminum-Rutile
Basicityindex:0.5-0.8
Grain size:2.0-0.28mm(10-60meshes)
Typical all weld metal mechanical property
|
Wire matched
|
Yield Stressos MPa
|
Tensile Strength MPa
|
Elongation 85%
|
Impact energy AKV(J) |
|
|
20℃ |
0 |
||||
|
HO8MnA |
≥330 |
430-600 |
≥20 |
≥50 |
≥27 |
|
HO8MnA |
≥390 |
490-670 |
≥18 |
≥50 |
≥27 |
|
EL12 |
≥330 |
415-550 |
≥22 |
-- |
≥27 |
|
EM12K |
≥400 |
480-650 |
≥22 |
-- |
≥27 |
Remark
1. Before welding, fluxes should be baked for two hours at 300-350℃
2. Removal of rust, oil, dirt, water, impurities, etc in welding-areas.

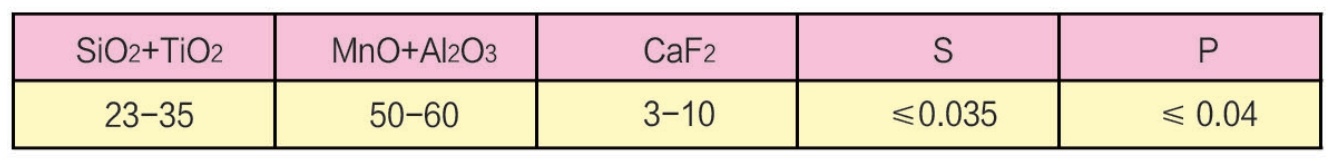

Compositions of fluxes(%)
Packing & Shipping
Application
