Detailed Description
Conforming to：GB/T5293 S43S0CS-SU08A S49S0CS-SU26
Equivalent to：AWS-A5.17 F6A0-EL12 F7A0-EM12K DIN BSC 198AC10SKM
Description and application

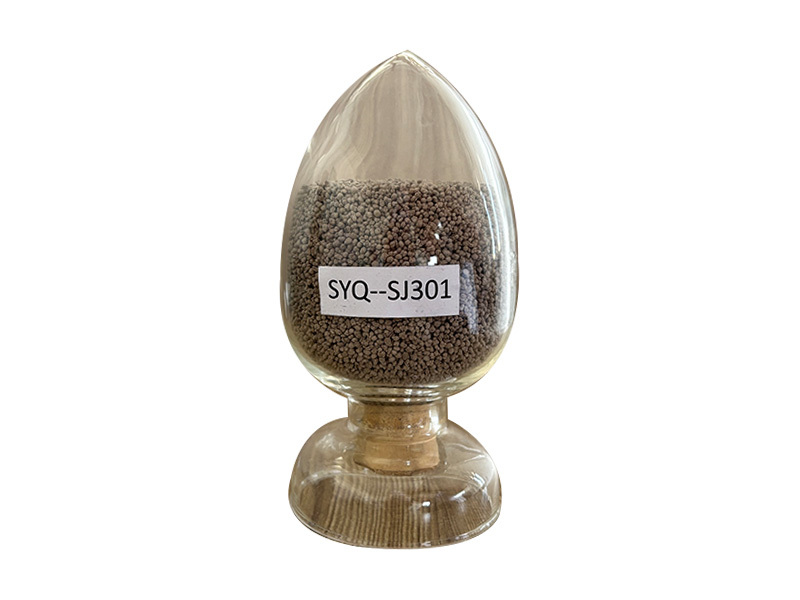

Versatile flux for welding of ordinary structural steel and boiler steel in combination with appopriate SAW wire(such as EM12,EM12K and EL8),which can obtain smooth weld bead with flat weld interfaces free from undercut. Steadily arc and easy slag removal, no phenomenon of slag-flow are other special features of LUj-SJ301. lt can be applied to the Multi-pass weld and multi-wire weld, especially to weld pipelines in variousdiameters.
Flux type: Silicon-Calcium
Basicity index:1.0
Grain size:2.0-0.28mm(10-60meshes)
Typical all weld metal mechanical property
|
Wire matched |
Yield Stressos MPa |
Tensile Strength MPa |
Elongation 85% |
Impact energy AKV(J) |
|
-30℃ |
||||
|
HO8MnA(EM12K) |
≥400 |
480-650 |
≥22 |
≥27 |
Remark
1. Before welding, fluxes should be baked for two hours at 300-350℃
2. Removal of rust, oil, dirt, water, impurities, etc in welding-areas.

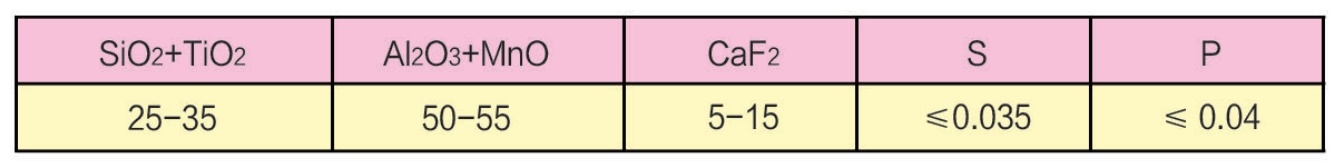

Compositions of fluxes(%)
Packing & Shipping
Application
